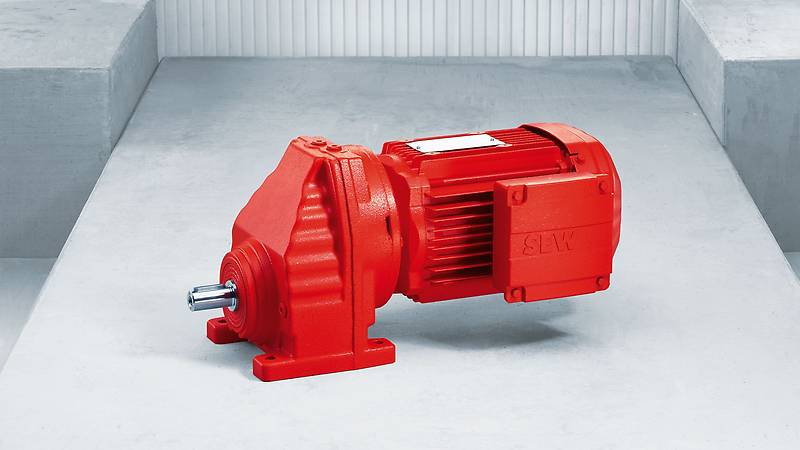

The SEW-EURODRIVE RX Series Inline Helical Gearmotor is a combination of performance and space requirements with 6 sizes in the range to cover many applications where a small ratio reduction is required for your driven piece of equipment. These single stage Helical Gearmotors are often found driving Conveyors, Helical Rotor Pumps, Crane Travel Drives and many more applications.
- Highly efficient helical gear units in 6 frame sizes
- High output speed, torque up to 830 Nm
- Gear unit ratios up to i = 8.65
- Available in foot or flange mounted design
Typical Model/Type Numbers:
- RX57 / RXF57
- RX67 / RXF67
- RX77 / RXF77
- RX87 / RXF87
- RX97 / RXF97
- RX107 / RXF107
Technical Data:
| Gear unit ratio | i | 1.30 – 8.65 |
|---|---|---|
| Max. output torque | Nm | 69 – 830 |
| Motor power range (Mounting via AM motor adapter) | kW | 0.12 – 45 |
Areas of Application:
- Roller Conveyors
- Belt Conveyors
- Chain Conveyors
- Helical Rotor Pumps
- Crane Travel Drives
Looking for a replacement RX / RXF Series SEW-EURODRIVE Inline Helical Gearmotor?
